Termékinformációk

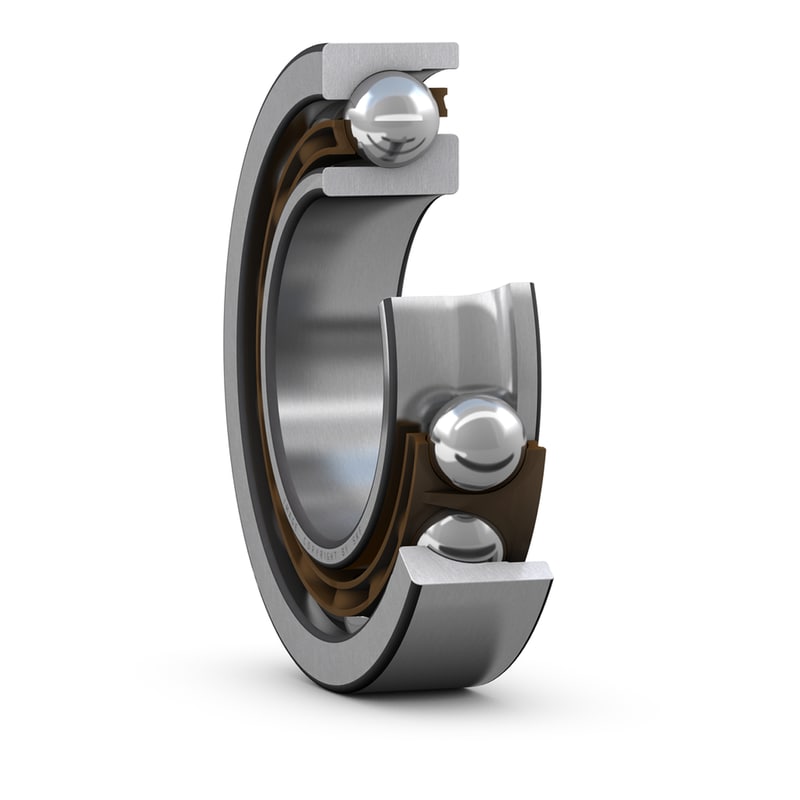

7209 BEP Single row angular contact ball bearing Részletes technikai adatokért KATTINTSON IDE!

Termék jellemzők

Belső átmérő mm45 mm
Külső átmérő mm85 mm
Szélesség mm19 mm
Sorok száma1
PontosságNormal
TömítésNincs
Tömítés típusaNem alkalmazható
Kenés típusaNincs
AnyagaCsapágyacél
Dinamikus alapterhelés35.8 kN
Statikus alapterhelés26 kN
Határfordulatszám9000 r/min

Részletes leírás

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability;Accommodate relatively high radial loads and large unilateral axial loads
SKF AB
