Termékinformációk

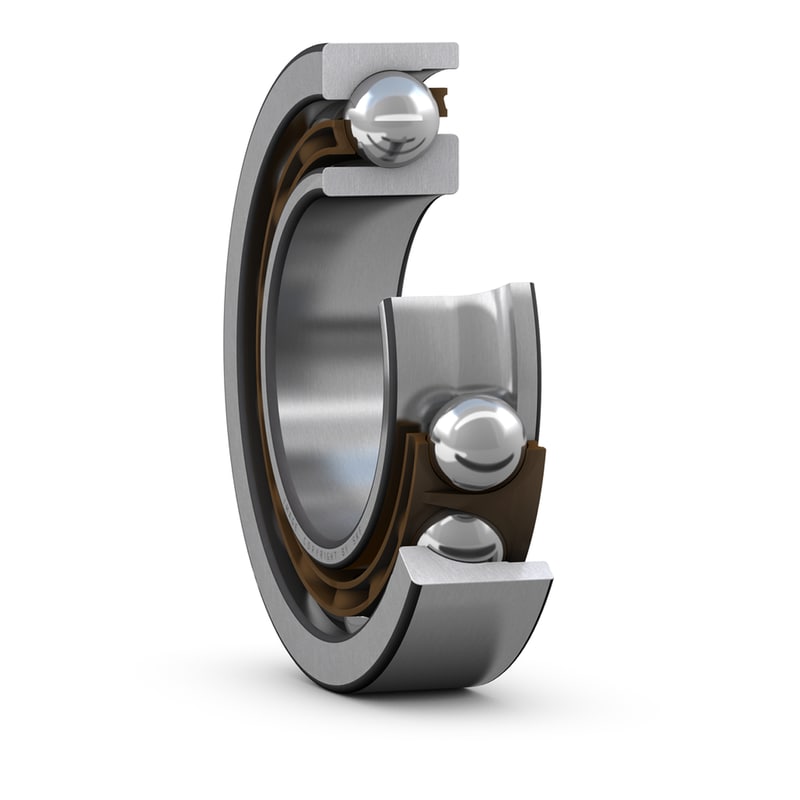

7313 BEP Single row angular contact ball bearing Részletes technikai adatokért KATTINTSON IDE!

Termék jellemzők

Belső átmérő mm65 mm
Külső átmérő mm140 mm
Szélesség mm33 mm
Sorok száma1
PontosságNormal
TömítésNincs
Tömítés típusaNem alkalmazható
Kenés típusaNincs
AnyagaCsapágyacél
Dinamikus alapterhelés108 kN
Statikus alapterhelés80 kN
Határfordulatszám5600 r/min

Részletes leírás

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

High-speed capability;Accommodate relatively high radial loads and large unilateral axial loads
SKF AB
