Termékinformációk

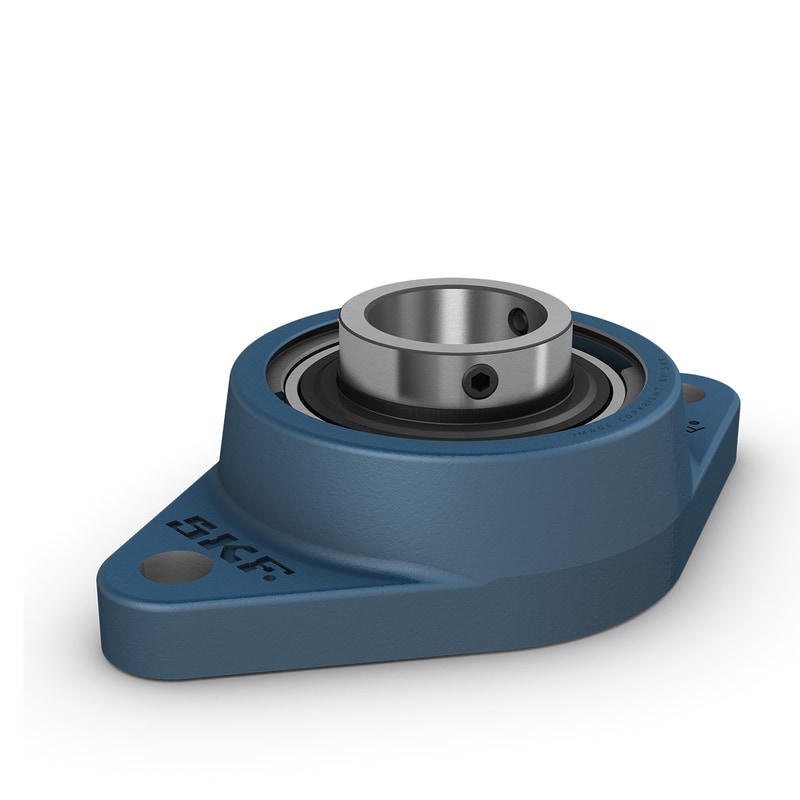

FYTB 30 TF Oval flanged ball bearing unit with an extended inner ring and set screw locking, cast iron, ISO standards Részletes technikai adatokért KATTINTSON IDE!

Termék jellemzők

Sorok száma0
FuratHengeres
Tömítés típusaKontakt
Kenés típusaZsír
AnyagaCsapágyacél
Dinamikus alapterhelés19.5 kN
Statikus alapterhelés11.2 kN
Határfordulatszám6300 r/min

Részletes leírás

These oval flanged ball bearing units are compliant with ISO standards. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame.

Resist high levels of contamination;Designed for hightemperatures and speeds;Accommodate relatively heavy loads;Cost-effective
SKF AB
