Termékinformációk

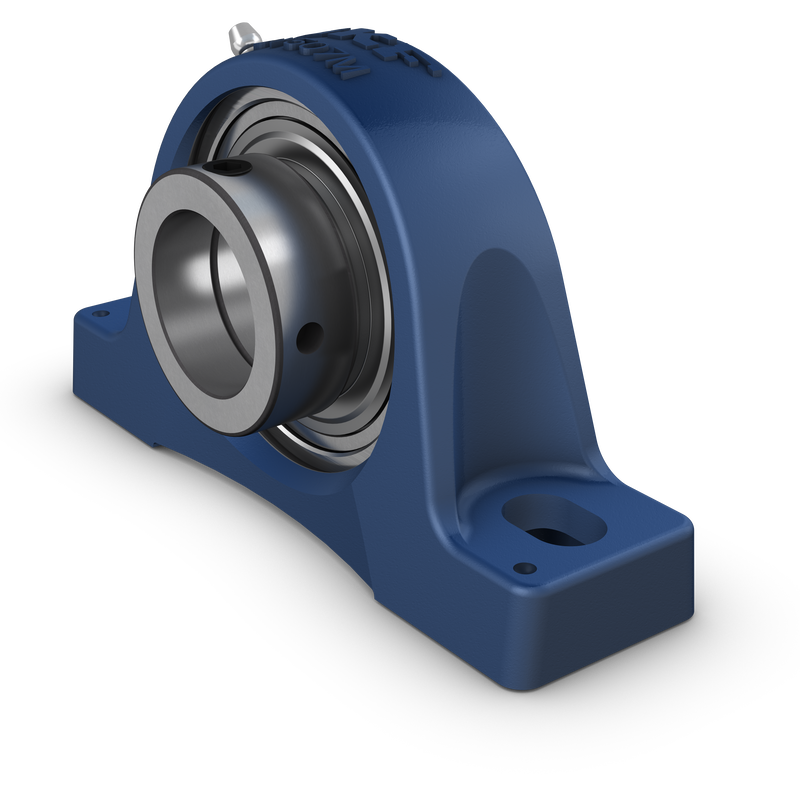

SY 20 FM Pillow block ball bearing unit with narrow inner ring and eccentric locking collar, cast iron, ISO standards Részletes technikai adatokért KATTINTSON IDE!

Termék jellemzők

Sorok száma0
FuratHengeres
Tömítés típusaKontakt
Kenés típusaZsír
AnyagaCsapágyacél
Dinamikus alapterhelés12.7 kN
Statikus alapterhelés6.55 kN
Határfordulatszám8500 r/min

Részletes leírás

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring and is locked onto the shaft by an eccentric locking collar, making it easy to mount.

Strong;Ready to mount;Lubricated and sealed bearing;Designed for rotation in one direction;Accommodate static initial misalignment
SKF AB
