Termékinformációk

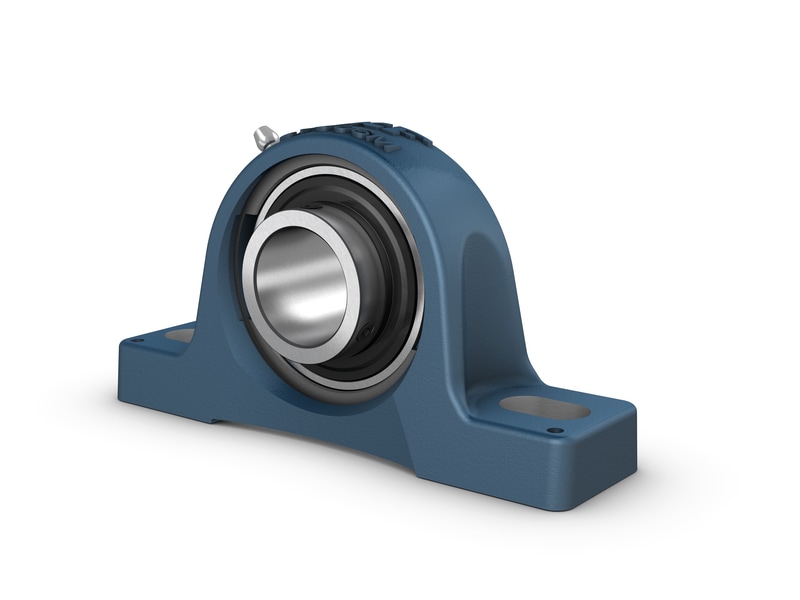

SY 60 TF Pillow block ball bearing unit with extended inner ring and set screw locking, cast iron, ISO standards Részletes technikai adatokért KATTINTSON IDE!

Termék jellemzők

Sorok száma0
FuratHengeres
Tömítés típusaKontakt
Kenés típusaZsír
AnyagaCsapágyacél
Dinamikus alapterhelés52.7 kN
Statikus alapterhelés36 kN
Határfordulatszám3400 r/min

Részletes leírás

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

Strong;Ready to mount;Lubricated and sealed bearing;Quick locking onto the shaft;Cost-effective
SKF AB
