Termékinformációk

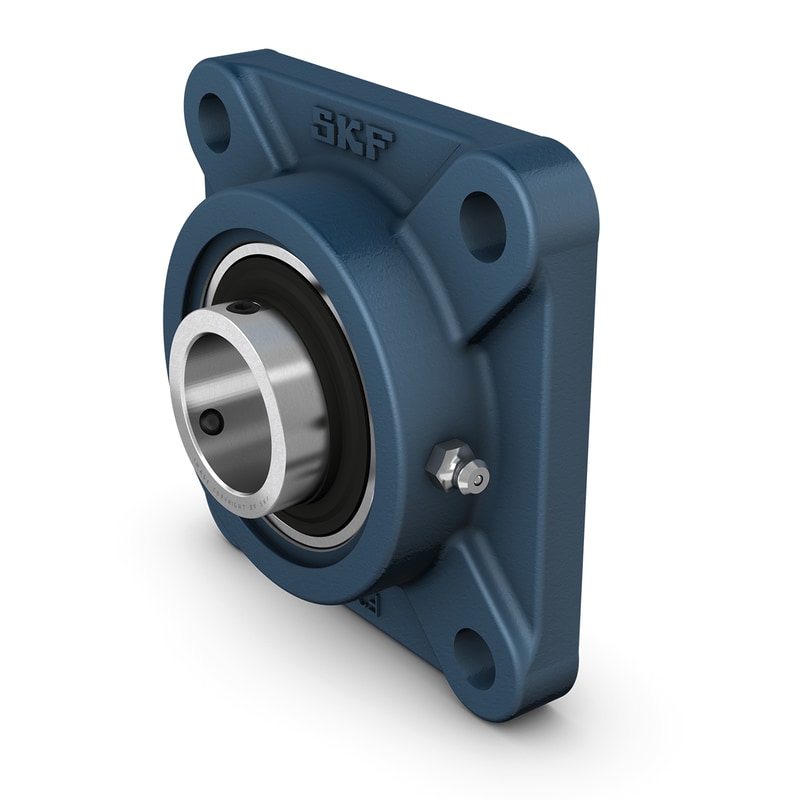

UCF 209/H Square flanged ball bearing unit with set screw locking, cast iron, JIS standards Részletes technikai adatokért KATTINTSON IDE!

Termék jellemzők

Sorok száma0
FuratHengeres
Tömítés típusaKontakt
Kenés típusaZsír
AnyagaCsapágyacél
Dinamikus alapterhelés33.2 kN
Statikus alapterhelés21.6 kN
Határfordulatszám3400 r/min

Részletes leírás

These square flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, with an extended inner ring and grub screw locking, suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Resist high levels of contamination;Designed for hightemperatures and speeds;Accommodate relatively heavy loads;Cost-effective
SKF AB
