Termékinformációk

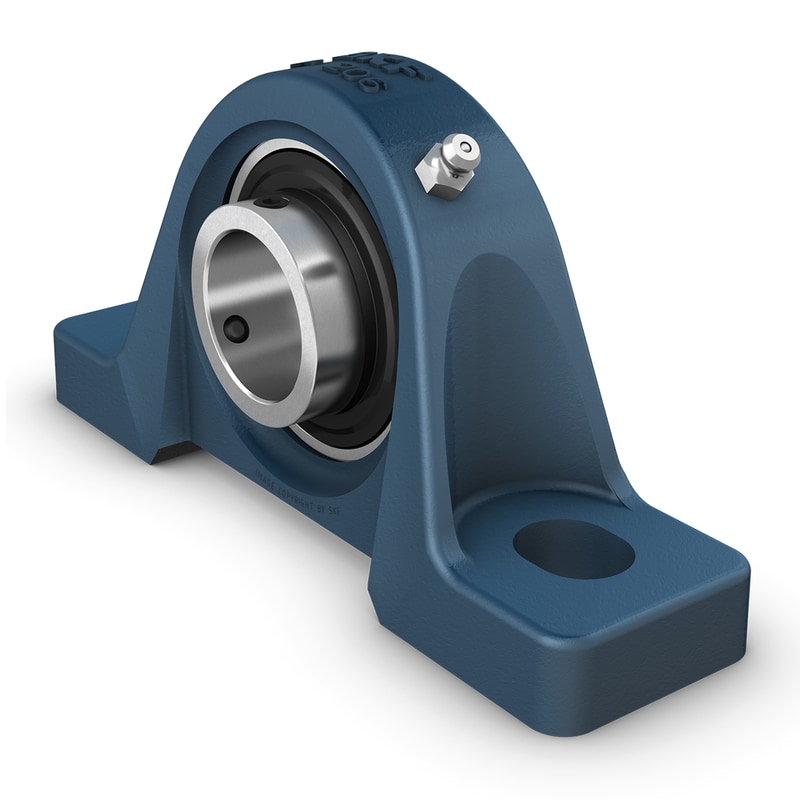

UCP 205/H Pillow block ball bearing unit with extended inner ring and set screw locking, cast iron, Japanese standards Részletes technikai adatokért KATTINTSON IDE!

Termék jellemzők

Sorok száma0
FuratHengeres
Tömítés típusaKontakt
Kenés típusaZsír
AnyagaCsapágyacél
Dinamikus alapterhelés14 kN
Statikus alapterhelés7.8 kN
Határfordulatszám5850 r/min

Részletes leírás

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is strong and stiff, and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

Strong;Designed for a constant and alternating rotation;Ready to mount;Lubricated and sealed bearing;Quick locking onto the shaft;Cost-effective
SKF AB
