Termékinformációk

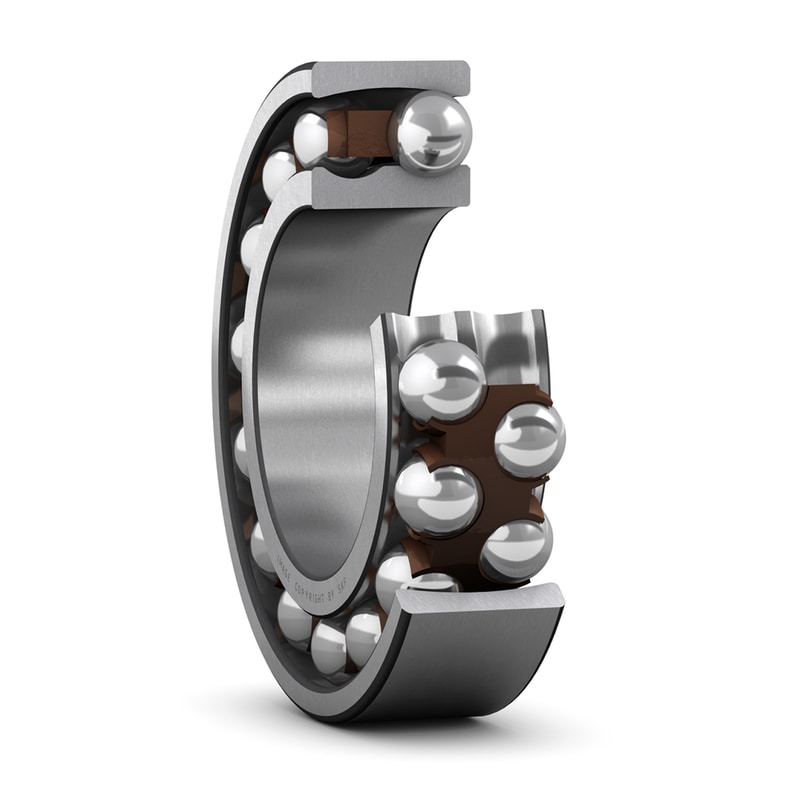

1209 ETN9 Self-aligning ball bearing Részletes technikai adatokért KATTINTSON IDE!

Termék jellemzők

Belső átmérő mm45 mm
Külső átmérő mm85 mm
Szélesség mm19 mm
Sorok száma0
FuratHengeres
PontosságNormal
TömítésNincs
Tömítés típusaNem alkalmazható
Kenés típusaNincs
AnyagaCsapágyacél

Részletes leírás

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.

Accommodate static and dynamic misalignment;Excellent high-speed performance;Excellent light load performance;Low friction
SKF AB
