Termékinformációk

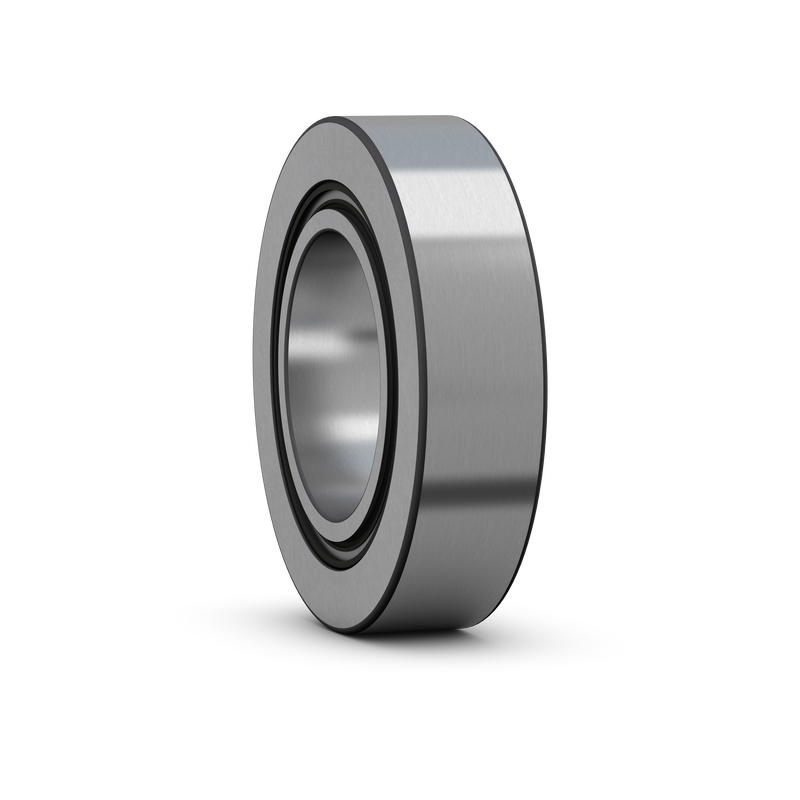

NA 2204.2RS Support roller (yoke-type track roller), without flange rings, with integral sealing Részletes technikai adatokért KATTINTSON IDE!

Termék jellemzők

Belső átmérő mm20 mm
Sorok száma1
Tömítés típusaKontakt tömítések
Kenés típusaZsír
AnyagaCsapágyacél
Dinamikus alapterhelés16100 kN
Statikus alapterhelés18000 kN
Határfordulatszám4000 r/min

Részletes leírás

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single row needle roller bearing with an inner ring and have a thick-walled outer ring with a crowned running surface. They are supplied sealed and are ready-to-mount. The inner ring contains a lubrication hole to facilitate relubrication. The inner ring can be mounted separately from the outer ring and roller and cage assembly.

High radial load carrying capacity;Able to withstand shock loads;Ready to mount;Separable design;Integral sealing prolongs bearing service life
SKF AB
