Termékinformációk

1726207-2RS1 Insert bearing, with standard IR, sealed 2RS1 Részletes technikai adatokért KATTINTSON IDE!

Termék jellemzők

Belső átmérő mm35 mm
Külső átmérő mm72 mm
Sorok száma0
FuratHengeres
TömítésMindkét oldalon
Tömítés típusaKontakt
Kenés típusaZsír
AnyagaCsapágyacél
Dinamikus alapterhelés25.5 kN
Statikus alapterhelés15.3 kN
Határfordulatszám6300 r/min

Részletes leírás

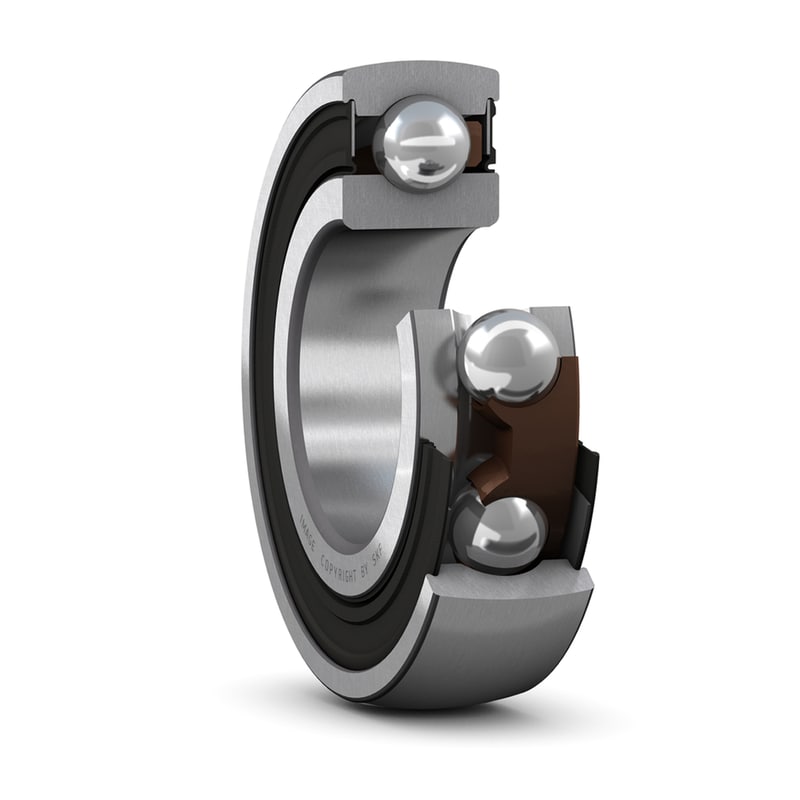

Insert bearings are based on sealed deep groove ball bearings. These insert bearings are suitable for applications where smooth running is a key operational parameter. It can accommodate heavier axial loads than any other insert bearing. The bearings are seald on both sides, made of sheet steel reinforced NBR, and are fitted in a recess on the outer ring and ride against the inner ring shoulder to act as contact seals.

Smooth running;Can accommodate havy axial loads;Seald on both sides
SKF AB
