Termékinformációk

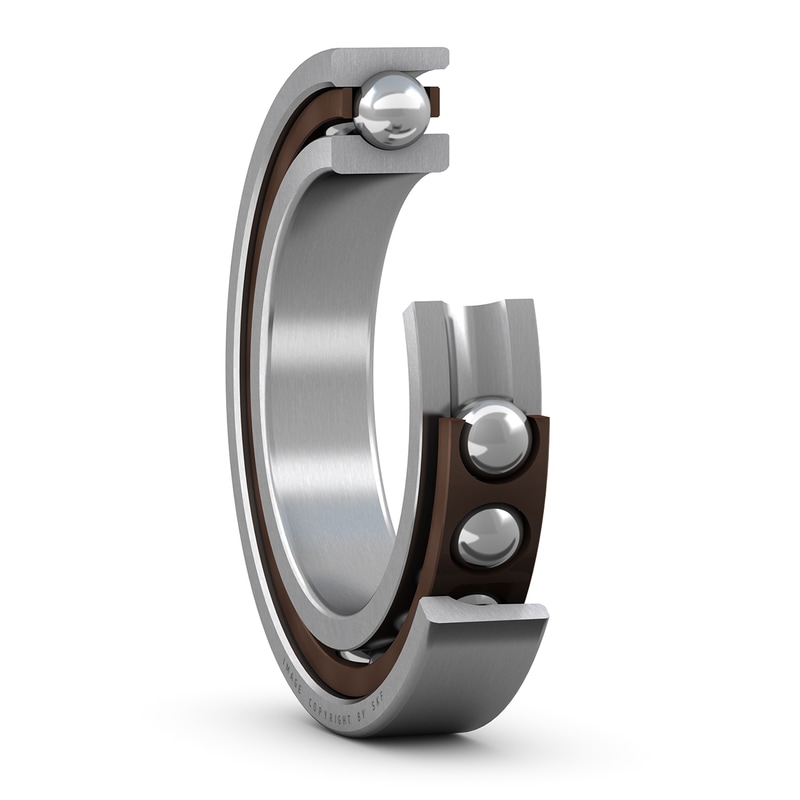

7007 ACD/P4A Super-precision, high-capacity, single row angular contact ball bearing with 25° contact angle Részletes technikai adatokért KATTINTSON IDE!

Termék jellemzők

Belső átmérő mm35 mm
Külső átmérő mm62 mm
Szélesség mm14 mm
Sorok száma0
TömítésNincs
Tömítés típusaNem alkalmazható
Kenés típusaNincs
AnyagaCsapágyacél
Dinamikus alapterhelés14.8 kN
Statikus alapterhelés9 kN

Részletes leírás

These super-precision, high-capacity, single row angular contact ball bearings, with 25° contact angle, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures.

25° contact angle;Very high running accuracy;Very high load carrying capacity;Relatively high speed and stiffness
SKF AB
