Termékinformációk

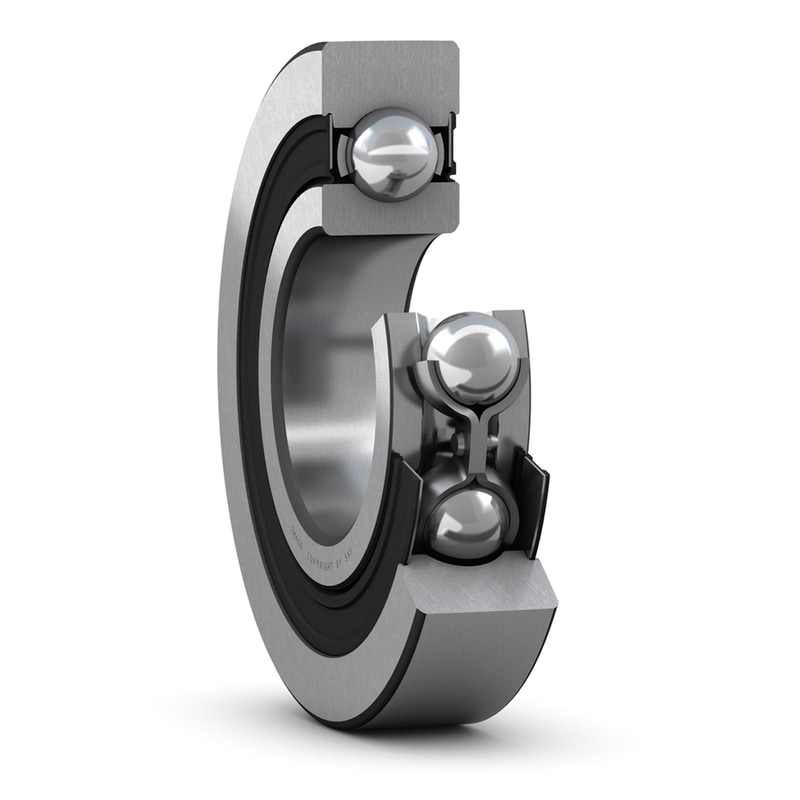

361207 R Single row cam roller with crowned outer surface and seals on both sides Részletes technikai adatokért KATTINTSON IDE!

Termék jellemzők

Belső átmérő mm35 mm
Szélesség mm17 mm
Sorok száma1
Tömítés típusaKontakt tömítések
Kenés típusaZsír
AnyagaCsapágyacél
Dinamikus alapterhelés22.1 kN
Statikus alapterhelés11.8 kN
Határfordulatszám4500 r/min

Részletes leírás

Single row cam rollers, with seals on both sides, are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single-row deep groove ball bearing and have a thick-walled outer ring with a crowned running surface. They are supplied sealed and greased for the life of the bearing, and are ready-to-mount. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

Run on all types of tracks, for use in cam drives, conveyor systems, etc.Crowned outer running surface;Greased, sealed and ready to mount;Integral sealing prolongs bearing service life;Typical benefits of single row deep groove ball bearings
SKF AB
